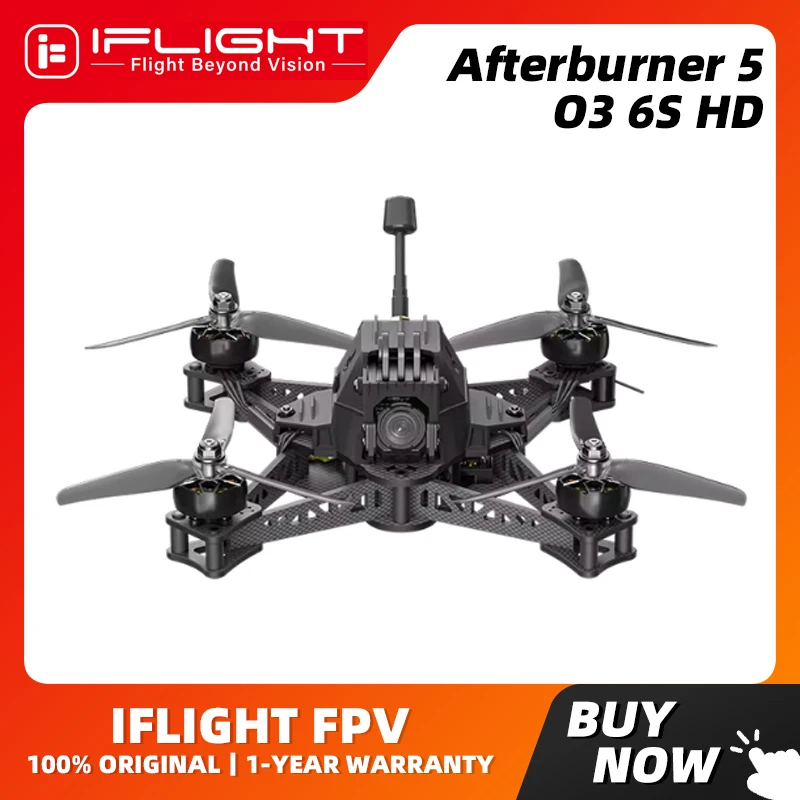

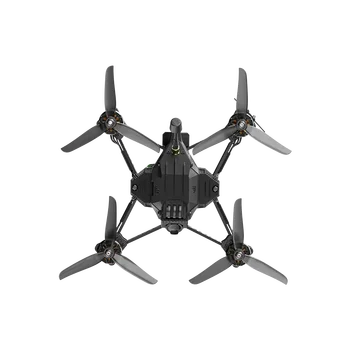

iflight Afterburner 5 O3 6S HD with DJI O3 Air Unit FPV RC Drone

Description

Afterburner – The CineWhoop by 2RAW and iFlight

NOT A FREESTYLE DRONE – Afterburner is designed for professional pilots who use their FPV drones for cinematic work, this drone is not designed around being crashed into concrete and coming out fine. The drone is designed around aerodynamics and balance.

Highlight

Smallest Footprint

Afterburner has a 20% smaller footprint than traditional 5inch freestyle frames, this allows for easier transportation as well as increased agility and less drag – meaning better all round performance.

Aero Shell

The aeroshell controls the airflow around the body and within the drone. As the speed of the drone increases the aero shell acts as an air divider, preventing air from hitting the flat top plate. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

Advanced Truss Arms

The star design combined with the trusses ensures great stiffness while keeping the weight down, and perfect balance, delivering exceptional results when it comes to filming with buttery footage.

Bottom Mount Battery

Inspired from FPV racers, we took a bottom mount battery approach, this allows the battery to cause minimal drag possible and completely clears the top of the drone to allow for the Gopro mounting as well as clear line of sight for the GPS. Afterburner was built for the cinema pilot! The central battery also allows the CG to remain close to the middle of the body allowing for improved agility in the air.

No Prop in view with Gopro

In 16:9 the GoPro has no props in the view from 5 degrees all the way to 60 degrees.

DJI O3 HD Air Unit Low-Latency Digital Transmission

Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Specifications

Product Name: Afterburner 5 O3 6S HD

FC: BLITZ F7 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O3 Air Unit

Geometry: X-Frame

Frame: 210 mm wheelbase

Motor: XING2 2207 1750KV motors

Prop: GEMFAN 5.1X3.6X3 propellers

Weight: 472±7g (Without Battery)

Dimensions (L×W×H):148x148x64mm

Max Speed: 160km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 11mins with 6S Lipo 1400mAh battery W/O Load

Operating Temperature Range: -10° to 40° C

Antennas: Single Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency:2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

Packing List

1 x Afterburner 5 O3 6S HD BNF

1 x Screw Bag

2 x Battery Strap

2 x Battery pads

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.
