Happymodel Mobula6 Race Freestyle HD BNF Freestyle Built-in HDZERO AIO5 flight controller New

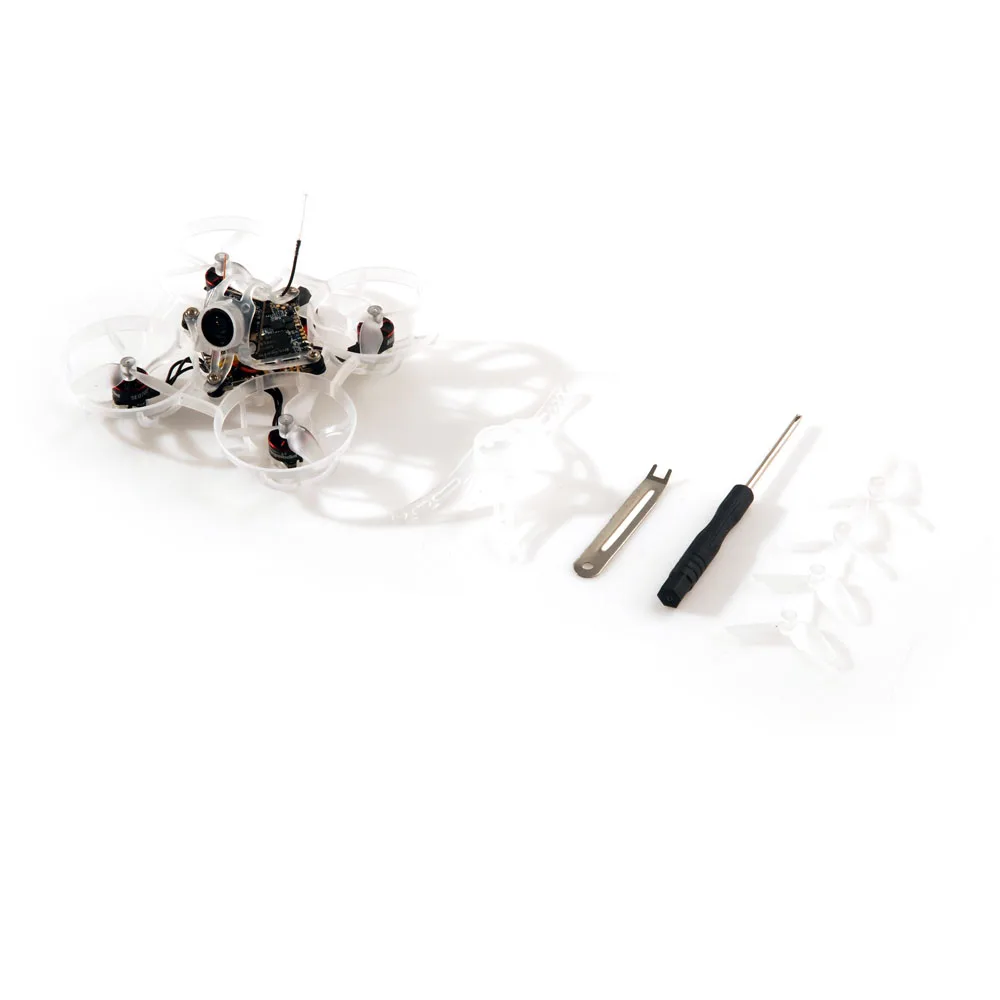

Included

1x Happymodel Mobula6 Race HD BNF
1x Spare canopy
1x Spare propeller(set)
1x Screw driver
1x propeller disassemble tool

Comparsion of Mobula6 HDZERO version

Description

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.

In order to achieve the goal of extreme weight reduction, HAPPYMODEL used original Japanese RENY screws at all costs, and also designed a lighter 5.8G VTX antenna. All these improvements are to make this HD BNF weigh less than 20 grams. We hope you like it.

Specifications

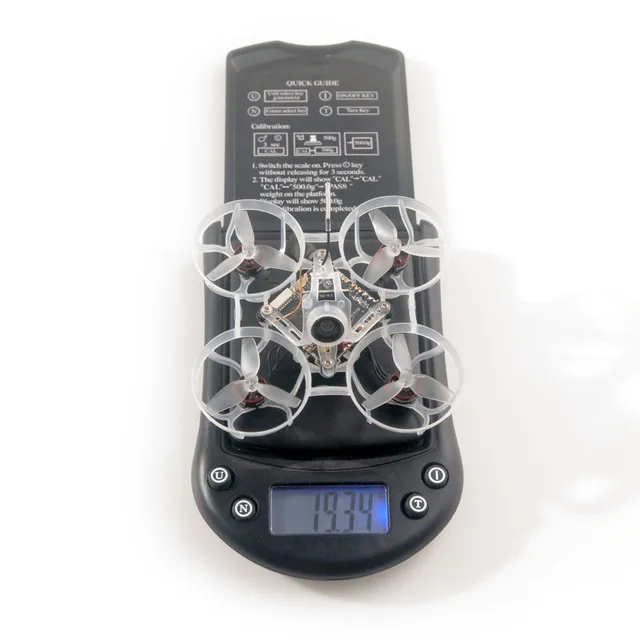

Weight: 19.3g
Recommended Battery: 1S 300mAh
Propeller Size: 31mm
AIO Flight controller
MCU: STM32F411 (100MHz, 512K Flash)
Gyro: BMI270
On board voltage and amperage meters
Built-in 5A(each) BLHeli_S 4-in-1 ESC
Built-in 5.8G HDZero VTX
Built-in SPI ExpressLRS 2.4GHz receiver
Built-in 5V 1A BEC
Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
Firmware target: CRAZYBEEF4SX1280

HDZero Eco Camera

Sensor size: 1/3 inch
Resolution: 720p60 4:3
FOV: D:150° H:120° V:98°

Motors

Kv:28000
Stator diameter: 7mm
Stator length:2mm
Shaft diameter: Φ1mm
Weight:1.5g

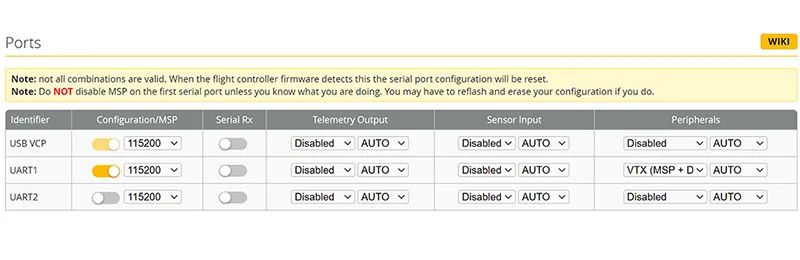

Default port and receiver settings:
